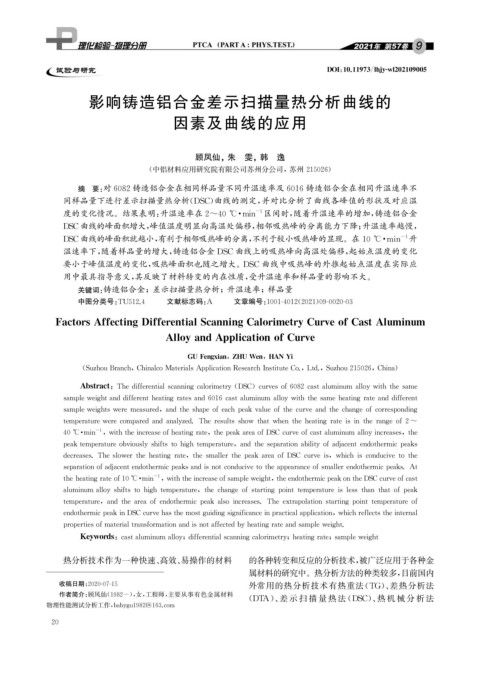

Page 36 - 理化检验-物理分册2021年第九期
P. 36

DOI : 10.11973 / lh jy -wl202109005

                       影响铸造铝合金差示扫描量热分析曲线的


                                            因素及曲线的应用






                                                 顾凤仙, 朱 雯, 韩 逸

                                      ( 中铝材料应用研究院有限公司苏州分公司, 苏州 215026 )
                    摘 要: 对6082铸造铝合金在相同样品量不同升温速率及6016铸造铝合金在相同升温速率不
                 同样品量下进行差示扫描量热分析( DSC ) 曲线的测定, 并对比分析了曲线各峰值的形状及对应温
                 度的变化情况。结果表明: 升温速率在2~40℃ · min 区间时, 随着升温速率的增加, 铸造铝合金

                                                                -1
                DSC曲线的峰面积增大, 峰值温度明显向高温处偏移, 相邻吸热峰的分离能力下降; 升温速率越慢,

                DSC曲线的峰面积就越小, 有利于相邻吸热峰的分离, 不利于较小吸热峰的显现。在10℃ · min 升
                                                                                                    -1
                 温速率下, 随着样品量的增大, 铸造铝合金 DSC曲线上的吸热峰向高温处偏移, 起始点温度的变化

                 要小于峰值温度的变化, 吸热峰面积也随之增大。 DSC 曲线中吸热峰的外推起始点温度在实际应
                 用中最具指导意义, 其反映了材料转变的内在性质, 受升温速率和样品量的影响不大。

                    关键词: 铸造铝合金; 差示扫描量热分析; 升温速率; 样品量

                    中图分类号: TU512.4   文献标志码: A   文章编号: 1001-4012 ( 2021 ) 09-0020-03

              FactorsAffectin gDifferentialScannin gCalorimetr yCurveofCastAluminum

                                          Allo y andA pp licationofCurve


                                               GUFen g xian , ZHU Wen , HANYi

                     ( SuzhouBranch , ChinalcoMaterialsA pp licationResearchInstituteCo. , Ltd. , Suzhou215026 , China )


                     Abstract : Thedifferentialscannin gcalorimetr y ( DSC ) curvesof6082castaluminumallo ywiththesame

                sam p lewei g htanddifferentheatin gratesand6016castaluminumallo ywiththesameheatin grateanddifferent

                sam p lewei g htsweremeasured , andthesha p eofeachp eakvalueofthecurveandthechan g eofcorres p ondin g

                tem p eraturewerecom p aredandanal y zed.Theresultsshowthatwhentheheatin grateisintheran g eof2~

                         -1
                40℃ · min , withtheincreaseofheatin g rate , thep eakareaofDSCcurveofcastaluminumallo y increases , the

                p eaktem p eratureobviousl yshiftstohi g htem p erature , andthese p arationabilit yofad j acentendothermicp eaks

                decreases.Theslowertheheatin grate , thesmallerthep eakareaofDSCcurveis , whichisconducivetothe

                se p arationofad j acentendothermic p eaksandisnotconducivetothea pp earanceofsmallerendothermicp eaks.At

                                       -1
                theheatin g rateof10℃ · min , withtheincreaseofsam p lewei g ht , theendothermic p eakontheDSCcurveofcast

                aluminumallo yshiftstohi g htem p erature , thechan g eofstartin gp ointtem p eratureislessthanthatofp eak

                tem p erature , andtheareaofendothermicp eakalsoincreases.Theextra p olationstartin gp ointtem p eratureof

                endothermic p eakinDSCcurvehasthemost g uidin g si g nificancein p racticala pp lication , whichreflectstheinternal

                p ro p ertiesofmaterialtransformationandisnotaffectedb y heatin g rateandsam p lewei g ht.


                     Ke y words : castaluminumallo y ; differentialscannin g calorimetr y ; heatin g rate ; sam p lewei g ht
              热分析技术作为一种快速、 高效、 易操作的材料                          的各种转变和反应的分析技术, 被广泛应用于各种金
                                                               属材料的研究中。热分析方法的种类较多, 目前国内
                                                               外常用的热分析技术有热重法( TG )、 差热分析法
                收稿日期: 2020-07-15
                作者简介: 顾凤仙( 1982- ), 女, 工程师, 主要从事有色金属材料
                                                               ( DTA )、 差 示 扫 描 量 热 法 ( DSC )、 热 机 械 分 析 法
            物理性能测试分析工作, bab yg u1982@163.com
             2 0
   31   32   33   34   35   36   37   38   39   40   41
