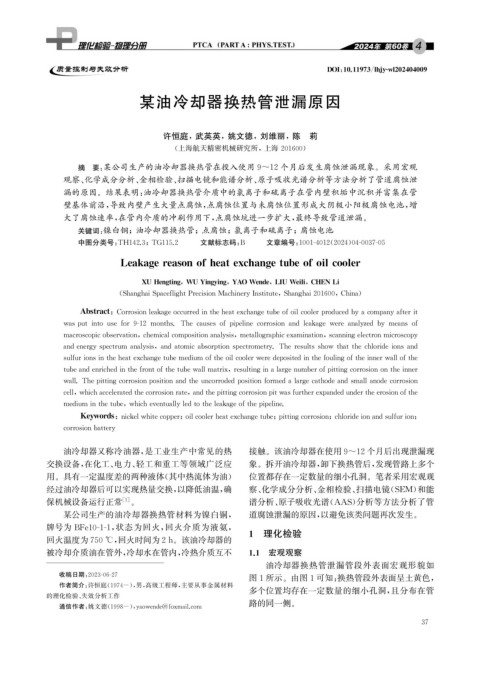

DOI : 10.11973 / lh jy -wl202404009

                                    某油冷却器换热管泄漏原因







                                         许恒庭, 武英英, 姚文德, 刘维丽, 陈 莉

                                            ( 上海航天精密机械研究所, 上海 201600 )


                    摘 要: 某公司生产的油冷却器换热管在投入使用9~12个月后发生腐蚀泄漏现象。采用宏观
                 观察、 化学成分分析、 金相检验、 扫描电镜和能谱分析、 原子吸收光谱分析等方法分析了管道腐蚀泄
                 漏的原因。结果表明: 油冷却器换热管介质中的氯离子和硫离子在管内壁积垢中沉积并富集在管
                 壁基体前沿, 导致内壁产生大量点腐蚀, 点腐蚀位置与未腐蚀位置形成大阴极小阳极腐蚀电池, 增
                 大了腐蚀速率, 在管内介质的冲刷作用下, 点腐蚀坑进一步扩大, 最终导致管道泄漏。




                    关键词: 镍白铜; 油冷却器换热管; 点腐蚀; 氯离子和硫离子; 腐蚀电池

                    中图分类号: TH142.3 ; TG115.2   文献标志码: B   文章编号: 1001-4012 ( 2024 ) 04-0037-05

                              Leaka g ereasonofheatexchan g etubeofoilcooler

                                              ,
                                                         ,
                                    XUHen g tin g WUYin gy in g YAO Wende , LIU Weili , CHENLi






                              ( Shan g haiS p acefli g htPrecisionMachiner y Institute , Shan g hai201600 , China )



                     Abstract : Corrosionleaka g eoccurredintheheatexchan g etubeofoilcooler p roducedb y acom p an y afterit

                was p utintousefor9-12 months.Thecausesofp i p elinecorrosionandleaka g e wereanal y zedb y meansof

                 macrosco p icobservation , chemicalcom p ositionanal y sis , metallo g ra p hicexamination , scannin g electronmicrosco py

                andener gy s p ectrumanal y sis , andatomicabsor p tions p ectrometr y .Theresultsshowthatthechlorideionsand

                sulfurionsintheheatexchan g etubemediumoftheoilcoolerwerede p ositedinthefoulin g oftheinnerwallofthe

                tubeandenrichedinthefrontofthetubewallmatrix , resultin g inalar g enumberof p ittin g corrosionontheinner

                wall.The p ittin g corrosionp ositionandtheuncorrodedp ositionformedalar g ecathodeandsmallanodecorrosion

                cell , whichacceleratedthecorrosionrate , andthe p ittin g corrosion p itwasfurtherex p andedundertheerosionofthe

                 mediuminthetube , whicheventuall y ledtotheleaka g eofthe p i p eline.

                     Ke y words : nickelwhiteco pp er ; oilcoolerheatexchan g etube ; p ittin g corrosion ; chlorideionandsulfurion ;

                corrosionbatter y
              油冷却器又称冷油器, 是工业生产中常见的热                            接触。该油冷却器在使用9~12个月后出现泄漏现
            交换设备, 在化工、 电力、 轻工和重工等领域广泛应                         象。拆开油冷却器, 卸下换热管后, 发现管路上多个
            用。具有一定温度差的两种液体( 其中热流体为油)                           位置都存在一定数量的细小孔洞。笔者采用宏观观
            经过油冷却器后可以实现热量交换, 以降低油温, 确                          察、 化学成分分析、 金相检验、 扫描电镜( SEM ) 和能
            保机械设备运行正常          [ 1 ] 。                         谱分析、 原子吸收光谱( AAS ) 分析等方法分析了管
                 某公司生产的油冷却器换热管材料为镍白铜,                          道腐蚀泄漏的原因, 以避免该类问题再次发生。
            牌号为 BFe10-1-1 , 状态为回火, 回火介质为液氨,
                                                              1 理化检验
            回火温度为750℃ , 回火时间为2h 。该油冷却器的
            被冷却介质油在管外, 冷却水在管内, 冷热介质互不                         1.1 宏观观察
                                                                   油冷却器换热管泄漏管段外表面宏观形貌如
                收稿日期: 2023-06-27
                                                               图1所示。由图1可知: 换热管段外表面呈土黄色,
                作者简介: 许恒庭( 1974- ), 男, 高级工程师, 主要从事金属材料
                                                               多个位置均存在一定数量的细小孔洞, 且分布在管
            的理化检验、 失效分析工作
                                                               路的同一侧。
                通信作者: 姚文德( 1998- ), y aowende@foxmail.com
