Page 30 - 理化检验-物理分册2021年第三期
P. 30

DOI : 10.11973 / lh jy -wl202103003

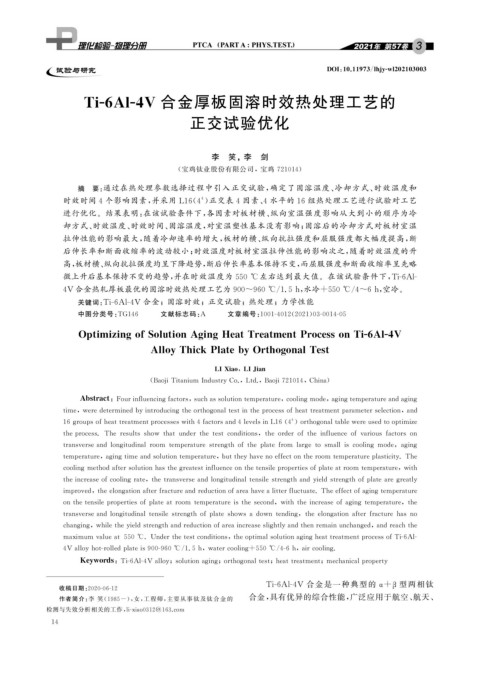

                     Ti-6Al-4V           合金厚板固溶时效热处理工艺的

                                                正交试验优化




                                                     李   笑,李   剑


                                             ( 宝鸡钛业股份有限公司,宝鸡 721014 )
                    摘   要: 通过在热处理参数选择过程中引入正交试验, 确定了固溶温度、 冷却方式、 时效温度和
                 时效时间4 个影响因素, 并采用 L16 ( 4 ) 正交表4 因素、 4 水平的16 组热处理工艺进行试验对工艺
                                                   4
                 进行优化。结果表明: 在该试验条件下, 各因素对板材横、 纵向室温强度影响从大到小的顺序为冷
                 却方式、 时效温度、 时效时间、 固溶温度, 对室温塑性基本没有影响; 固溶后的冷却方式对板材室温
                 拉伸性能的影响最大, 随着冷却速率的增大, 板材的横、 纵向抗拉强度和屈服强度都大幅度提高, 断
                 后伸长率和断面收缩率的波动较小; 时效温度对板材室温拉伸性能的影响次之, 随着时效温度的升
                 高, 板材横、 纵向抗拉强度均呈下降趋势, 断后伸长率基本保持不变, 而屈服强度和断面收缩率呈先略

                 微上升后基本保持不变的趋势, 并在时效温度为 550 ℃ 左右达到最大值。在该试验条件下, Ti-6Al-

                4V 合金热轧厚板最优的固溶时效热处理工艺为900~960℃ / 1.5h , 水冷+550℃ / 4~6h , 空冷。

                    关键词: Ti-6Al-4V 合金;固溶时效;正交试验;热处理;力学性能




                    中图分类号: TG146    文献标志码: A    文章编号: 1001-4012 ( 2021 ) 03-0014-05

                    O p timizin g ofSolutionA g in gHeatTreatmentProcessonTi-6Al-4V

                                      Allo yThickPlateb yOrtho g onalTest

                                                      LIXiao , LIJian

                                      ( Bao j iTitaniumIndustr yCo. , Ltd. , Bao j i721014 , China )


                     Abstract : Fourinfluencin g factors , suchassolutiontem p erature , coolin gmode , a g in g tem p eratureanda g in g

                time , weredeterminedb y introducin g theortho g onaltestinthep rocessofheattreatment p arameterselection , and

                                                                         4
                16g rou p sofheattreatment p rocesseswith4factorsand4levelsinL16 ( 4 ) ortho g onaltablewereusedtoo p timize

                thep rocess.Theresultsshowthatunderthetestconditions , theorderoftheinfluenceofvariousfactorson

                transverseandlon g itudinalroom tem p eraturestren g thofthep latefromlar g etosmalliscoolin g mode , a g in g

                tem p erature , a g in g timeandsolutiontem p erature , butthe yhavenoeffectontheroomtem p erature p lasticit y .The

                coolin gmethodaftersolutionhastheg reatestinfluenceonthetensile p ro p ertiesof p lateatroomtem p erature , with

                theincreaseofcoolin g rate , thetransverseandlon g itudinaltensilestren g thandy ieldstren g thofp lateareg reatl y

                im p roved , theelon g ationafterfractureandreductionofareahavealitterfluctuate.Theeffectofa g in g tem p erature

                onthetensilep ro p ertiesofp lateatroomtem p eratureisthesecond , withtheincreaseofa g in gtem p erature , the

                transverseandlon g itudinaltensilestren g thofp lateshowsadowntendin g , theelon g ationafterfracturehasno

                chan g in g , whilethey ieldstren g thandreductionofareaincreasesli g htl y andthenremainunchan g ed , andreachthe

                 maximumvalueat550 ℃.Underthetestconditions , theo p timalsolutiona g in gheattreatment p rocessofTi-6Al-

                4Vallo yhot-rolledp lateis900-960 ℃ / 1.5h , watercoolin g +550 ℃ / 4-6h , aircoolin g .


                     Ke y words : Ti-6Al-4Vallo y ; solutiona g in g ; ortho g onaltest ; heattreatment ; mechanical p ro p ert y
                                                                                                    型两相钛
                                                                 Ti-6Al-4V 合金是一种典型的 α+ β
                收稿日期: 2020-06-12

                作者简介: 李 笑( 1985- ), 女, 工程师, 主要从事钛及钛合金的         合金, 具有优异的综合性能, 广泛应用于航空、 航天、
            检测与失效分析相关的工作, li-xiao0312@163.com
             1 4
   25   26   27   28   29   30   31   32   33   34   35
